nouvelles de l'entreprise SMD Pick and Place Machines: Driving Precision and Efficiency in Modern Electronics Manufacturing

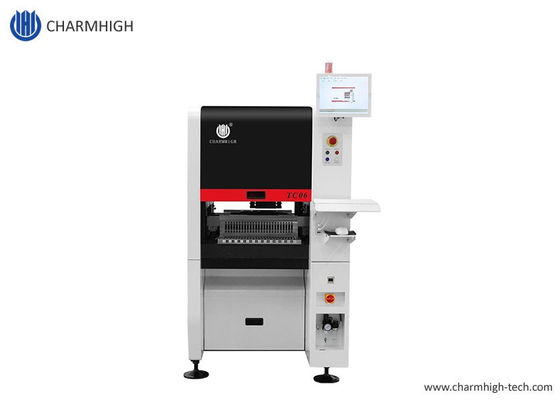

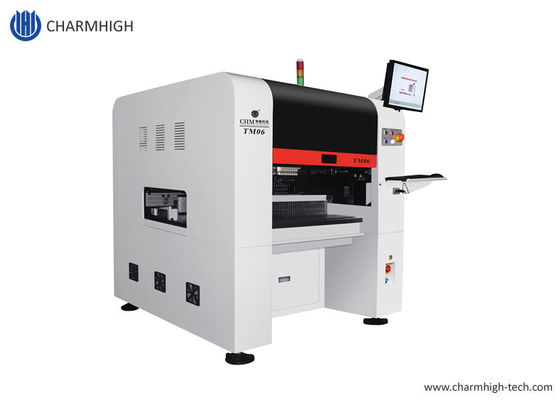

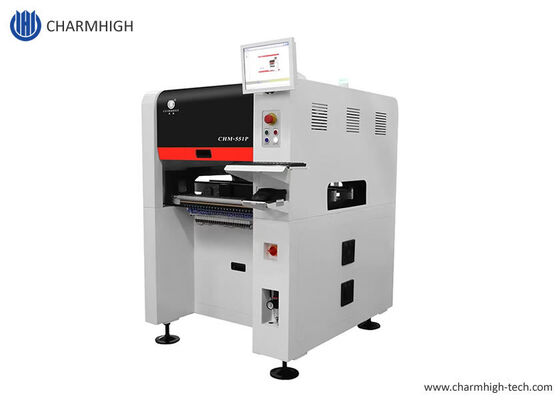

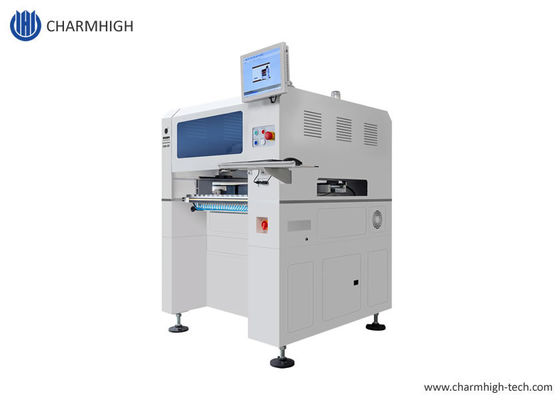

Surface Mount Technology (SMT) has transformed electronics assembly by enabling high-density, high-performance printed circuit boards (PCBs). At the heart of SMT production are SMD pick and place machines, which automatically pick surface-mount components from reels, trays, or tubes and accurately place them onto PCBs. With increasing demand for miniaturized devices, IoT products, and high-reliability electronics, these machines have become indispensable in modern manufacturing lines.

SMD pick and place machines combine mechanical precision, vision systems, and software intelligence to achieve high-speed, high-accuracy assembly. Key components include:

• Robotic arms and nozzles: Capable of picking components as small as 01005 packages.
• Vision systems: High-resolution cameras detect component orientation, placement accuracy, and PCB fiducials.
• Conveyor integration: Synchronizes with PCB handling systems for continuous operation.
• Software control: Optimizes placement sequence, tracks component usage, and interfaces with MES systems.

Modern machines can handle thousands of components per hour, achieving placement accuracy within ±0.02 mm for fine-pitch ICs and passive components.

• Consumer Electronics: Smartphones, tablets, and wearable devices require ultra-compact, high-density PCB assembly.
• Automotive Electronics: ECUs, sensors, and infotainment systems demand reliable placement for safety-critical applications.
• Industrial Automation: PLCs, motor controllers, and power modules require precise multi-layer PCB assembly.
• Medical Devices: High-reliability boards for diagnostic equipment, imaging systems, and implants.

• Vision & AI Integration: Machine learning algorithms improve component recognition and error correction.
• Adaptive Placement Algorithms: Optimize placement paths for efficiency and reduced mechanical wear.
• IoT & Industry 4.0 Integration: Real-time monitoring, predictive maintenance, and centralized production analytics.
• Fine-Pitch & Odd-Form Handling: Expanded capabilities for ultra-small components and irregular shapes.

With increasing global electronics demand, analysts project strong growth for the SMD pick and place machine market, particularly in Asia-Pacific, North America, and Europe. Key drivers include:

• Miniaturization and higher component density.
• Demand for high-mix, low-volume production flexibility.
• Integration with smart factory and Industry 4.0 initiatives.

“The pick and place machine is no longer just a placement tool; it is the backbone of efficient, high-precision SMT assembly lines,” said a senior engineer at a leading equipment manufacturer. “As production complexity grows, advanced machines equipped with AI and IoT connectivity are essential for maintaining yield and minimizing downtime.”

SMD pick and place machines remain central to modern electronics manufacturing. With advancements in speed, accuracy, flexibility, and digital integration, these systems are set to meet the challenges of next-generation electronics, from ultra-compact consumer devices to mission-critical automotive and medical applications. Manufacturers investing in AI-enhanced, IoT-enabled machines will benefit from higher efficiency, better traceability, and long-term operational reliability.
